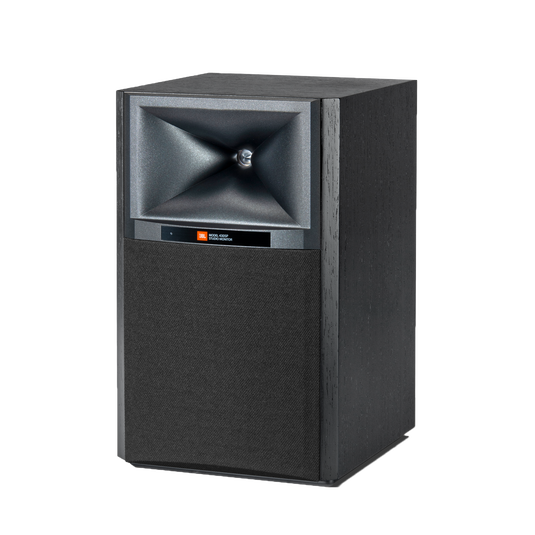

4305P Studio Monitor

4305P Studio Monitor

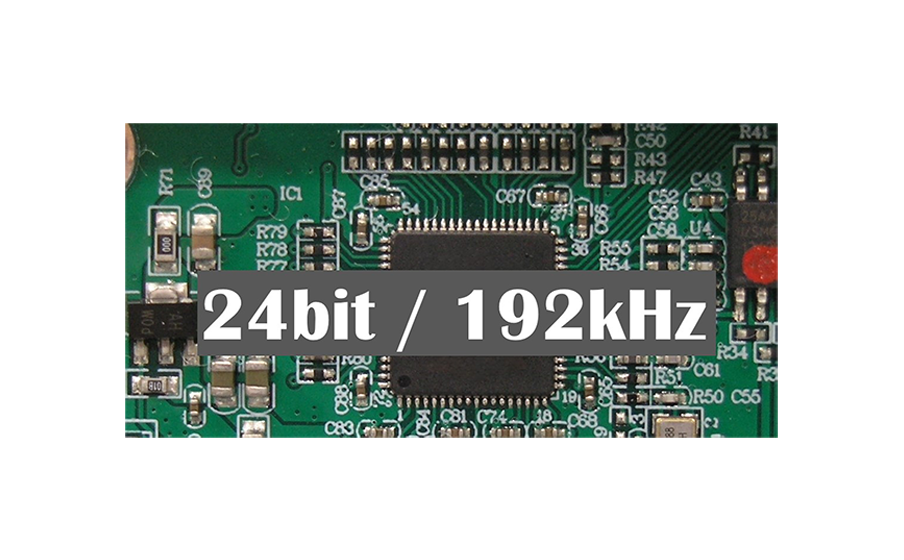

El monitor de estudio JBL 4305P es un sistema de altavoces autoalimentados completamente autónomo que ofrece audio en streaming de alta resolución y conectividad prosumer. Las tecnologías acústicas patentadas de JBL proporcionan un sonido con una precisión increíble y una dinámica potente, mientras que la amplia conectividad por cable e inalámbrica abre un mundo de posibilidades para los amantes de la música y los creadores de contenidos. El motor de streaming integrado proporciona capacidades de audio en red con cable e inalámbricas a través de Google Chromecast built-in, Apple AirPlay 2 y audio Bluetooth. Una DAC de alta resolución de 24 bits/192 kHz garantiza que tu música favorita se transmita con la máxima fidelidad. Además de audio inalámbrico de primera calidad, el 4305P proporciona amplias conexiones para fuentes físicas analógicas y digitales, incluida una entrada de fono combinada XLR/TRS de 6 mm de calidad profesional para su uso con señales balanceadas o no balanceadas.

Características generales

Type

Compact, Bass-reflex Loudspeaker System with Built-inAmplification, DSP, and Wireless Connectivity

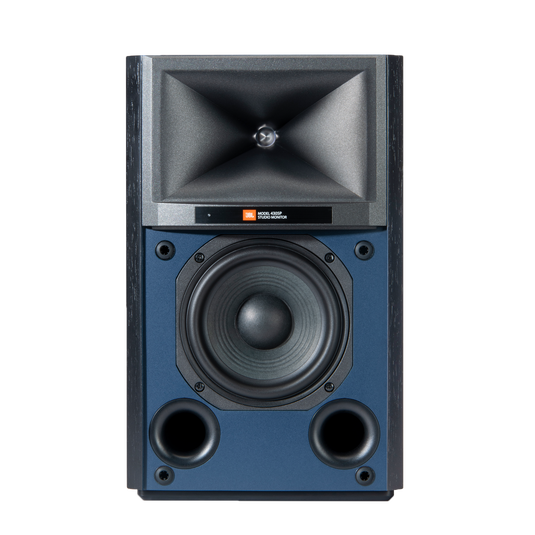

Low Frequency Drivers

JW130P-4, 5.25-inch (130mm) Pure-pulp Black Paper Cone Woofers with Cast-frames

High Frequency Drivers

2410H-2, 1-inch (25mm) Annular Ring, Teonex® Diaphragm Compression Drivers with Advanced HDI™ Geometry Horns

Amplifier Power

300W Class D System Power, 150W RMS per Speaker (25W per HF Compression Driver + 125W per LF Woofer)

Audio Resolution

Up to 24-bit, 192 kHz (Digital Link connection between spks), Up to 24-bit, 96 kHz (Wireless connection between spks)

Frequency Response

45 Hz - 25 kHz (-6 dB)

Crossover Frequency

1,750 Hz

Dispersion

90° Horizontal x 60° Vertical (2kHz to 20kHz)

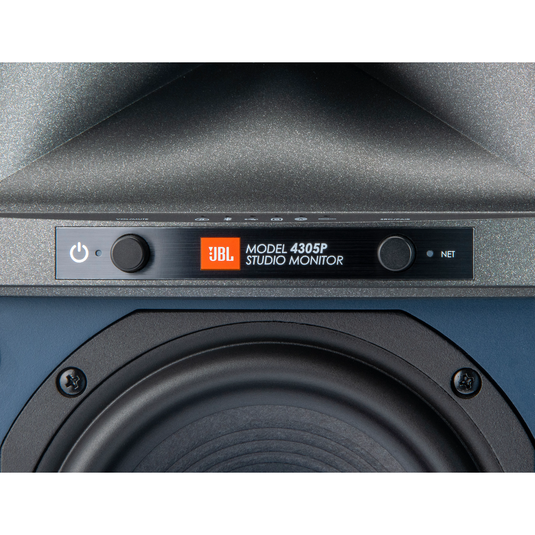

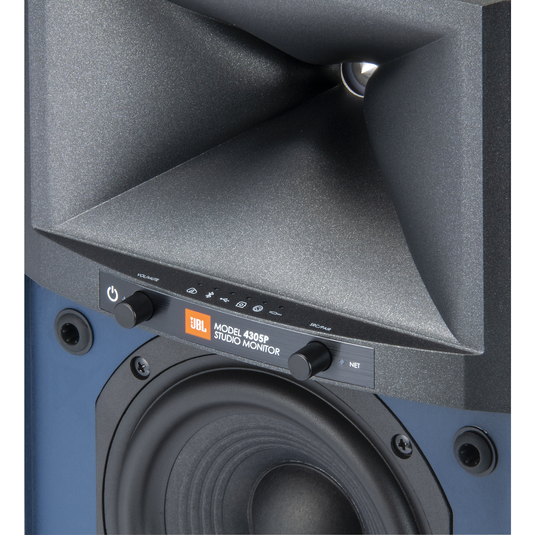

Sound Controls

Front Panel- Volume +/- and Source Selection, Bluetooth Remote, Boundary Compensation (Flat / -3dB)

Wireless Inputs

WiFi streaming, Bluetooth 5.1

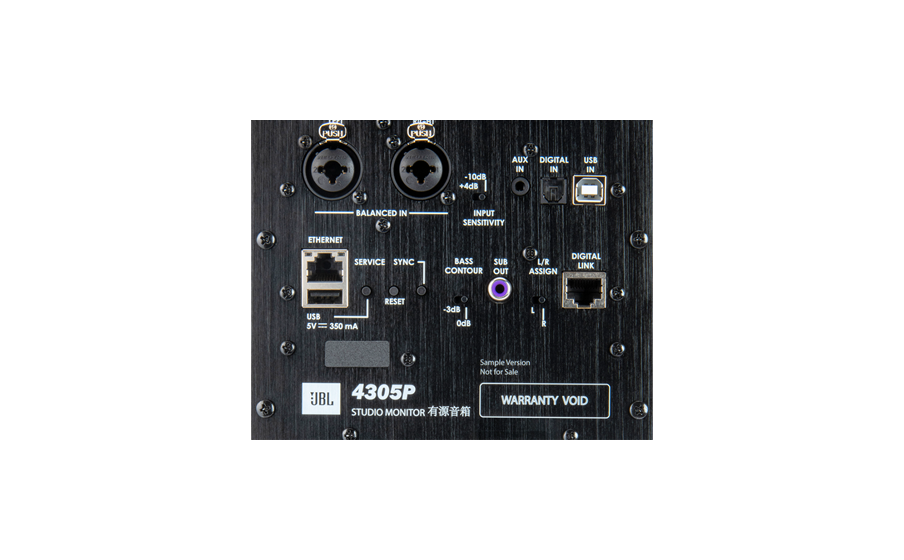

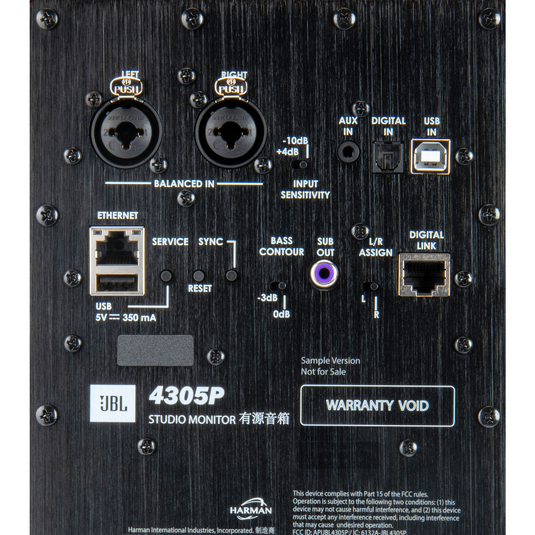

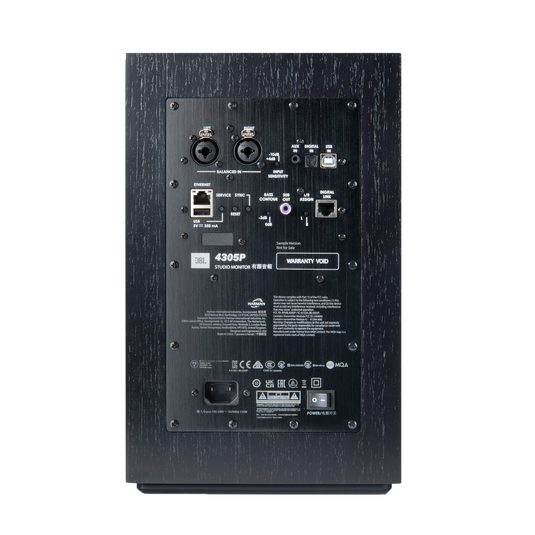

Wired Inputs

Analog - XLR/¼" Combo and 3.5mm stereo, Digital - Asynchronous USB-B and Toslink/Optical

Wired Inputs, Digital

Asynchronous USB-B and Toslink/Optical

Supported Digital Audio Sample Rates (PCM 2CH)

Streaming & Local Media - 32kHz/44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHzSPDIF - Up to 192kHzBluetooth - Up to 48kHz

Music Formats Supported (Local Media)

AAC / AIFF / ALAC / DSD (to PCM) / FLAC / MP3 / MP4 / OGG / WAV / WMA

Subwoofer Output

Autosensing w/ Auto-engage of 80Hz High Pass Filter

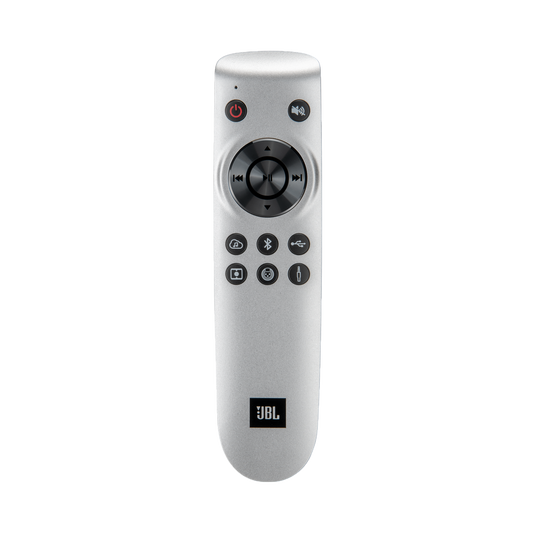

Remote Control Type

BTLE Wireless

Bluetooth Audio

Version 5.1, Profiles - SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Vido Remote Control Profile)

Bluetooth Profiles

SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Vido Remote Control Profile)

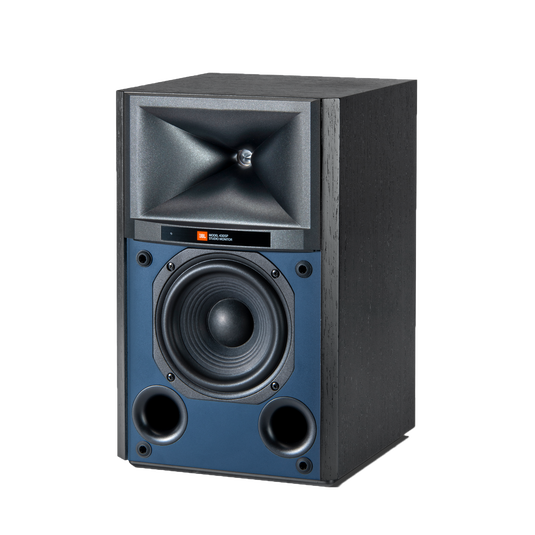

Enclosure

Bass-reflex Design with Dual Front-facing Ports, ¾" MDF Finished in Satin Walnut, Black Walnut, White Aspen, Furniture-Grade Wood Veneer

Grille

Dark Blue (with Walnut Cabinet), Black (with Black Cabinet), White(with Matte White Cabinet) Acoustically Transparent Cloth Grille

Net Speaker Dimensions with grille

13.2” H x 8.3” W x 8.8” D (336mm x 210mm x 223.3mm)

Net Speaker Weight

Primary - 15.0 lbs (6.8kg), Secondary - 14.1 lbs (6.4kg)

Shipping Units of Measure

System Pairs

Gross Shipping Dimensions

23.5” L x 11.4” W x 18.0” H (597mm x 290mm x 458mm)

Gross Shipping Weight

36.5 lbs (16.6 kg)

AC Input Voltage

100 - 240 VAC (+/-10%), 50/60Hz
